High Speed PET Stretch Blow Molding Machine | ZQ-B600-8

High Speed PET Stretch Blow Molding Machine | ZQ-B600-8
High Speed Full Automatic PET Stretch Blow Moulding Machine(Linear Type)

ZQ-B600-8 Full-automatic PET stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has eight cavities and the maximum volume of the products is 600ml. It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.

ZQ-B600-8 machine adopts intermittent preform loading system.ZQ-B600-8 Video

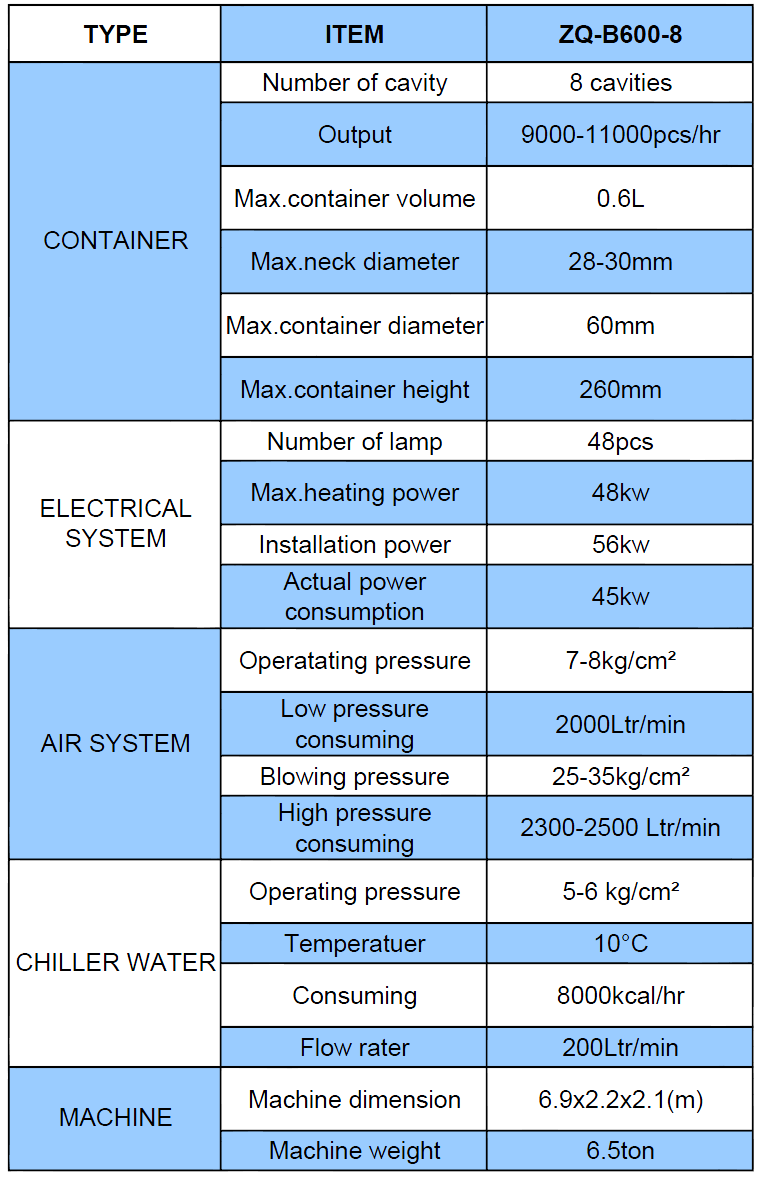

High Speed (Output MAX): 11000 Bottles/Hour, Container Volume: <=600ml.

1.  This machine is easy to operate by using full autoamtic human-machine interface. It runs smoothly at very high speed.
2.  Every parts of whole machine is selected properly and treated precisely.
3.  It adopts advanced intermittent preform loading syestem.
4.  Conveying preforms automatically with conveyor.
5.  Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
6.  High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
7.  High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
8.  No contamination and low noise.
9.  Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
10.Strong clamping force with high pressure and double crank links to lock the mold.
11.Two ways of operating: automatic and manual.
12.Safe,reliable,and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
13.Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
14.Contamination is avoided for the bottle body.
15.Ideal effect of the chilling with the chilling system.
16.Easy installation and starting;Low rejection rate: less than 0.2 percent.

Note: The specifications are subject to change without notice for the further improvement. Custom production accepted. Any client idea tried.
